Vision Engraver & Router System - Our Products
Click to Enlarge Image

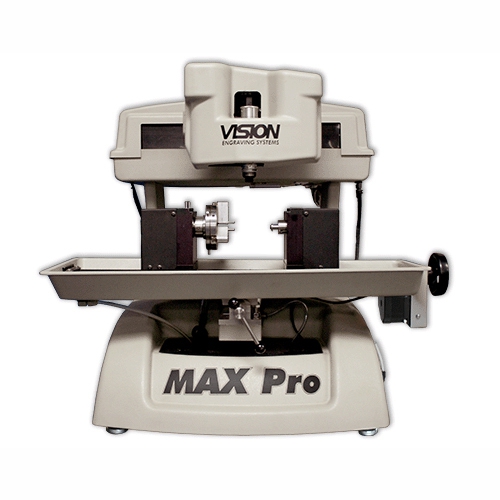

Specialty - Cylindrical, Flat & Glass MAX Pro S5 Engraver

Description

The MAX Pro S5 Engraver was developed to be Vision's most versatile machine to date, allowing for engraving of flat, deep, round or odd-shaped items in one compact, easy-to-use machine. The system is frequently used as a glass engraving machine, but its automatic surface-sensing feature allows for flat and curved surface engraving on a wide range of other materials as well, such as plastic, brass, coated and non-coated metals, artificial stone, crystal, and more. The system includes Vision’s Auto Laser Layout feature, which sends the engraving area and position directly to the software without measuring.

The MAX Pro S5 system offers:

    • Interchangeable, self-centering vise with tilt for engraving deep,
      long or odd-shaped items

    • Built-in cylindrical feature for engraving round items

    • Self-contained, recirculating water pump for use as a glass
      engraving machine

    • Red laser pointer for easy job set-ups

    • Limited 2-year warranty

Applications: Glass Engraving, Jewelry, Cylindrical Engraving, Sign making, Jewelry, Medals, Pens, Trophy & Plaques, Parts Marking, Badge Engraving, ADA Braille Signs, Wood, Plastic, Metal, Tag Engraving, Control Panels and more!

Offering the most affordable machines in their class, all of Vision's rotary engraving machines are made in the USA, built to be rugged, and backed by a superior customer support team.

  • Overview
  • Product Images
  • Downloads
  • Enquiry Product

MAX Pro Specialty Engraver Specifications Chart

Software Vision Express standard (Expert or Pro optional)
Maximum work area 8" x 12"
Maximum size part Flat 14" (L) x Any Width x 7" (H)
Cylindrical 12" x 6" Diameter
Z-Axis Stroke 3"
Spindle Type  11/64", 6mm or 1/4" / Top Loading
Resolution / Speed 0.0002" - 10"/sec
Table Type Aluminum T-slot, Cylindrical
Interface Ethernet
Controller Internal Series 4 Controller with Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 10 Amp
Physical Dimensions 28"(W) x 28"(D) x 26"(H)
Shipping Dimensions  37"(W) x 35"(D) x 39"(H) 353 lbs
Additional Options Top/Bottom Collet, Ring Attachment
*3D Engraving Software
Name Version
Flat & Glass MAX Pro S5 Engraver
