Signvec Manual Engraving Machine - Our Products

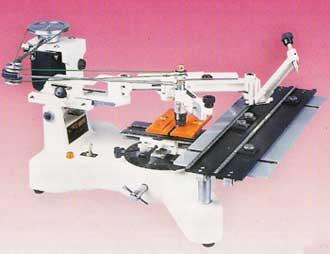

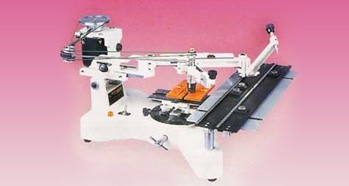

Click to Enlarge Image

PM3

Description

This model is capable of deep engraving on plastic and metal materials. It is a P type series
model equipped with a motor and spindle. This is the most popular general purpose model in
the P series featuring low price and excellent all-round performance.
The PM-3 has a very wide application range extending from personal accessories to machinery
components, display plaques for electrical equipment, sign boards in hotels and stores, key
holders, lighters, watches and so on.
By fitting the diamond point attachment (POINTS) this machine can simulate the effect of the
smooth diamond engraving performance as the P model. The PM-3 is extremely easy to
operate, even inexperienced workers, children and so on can engrave attractive letters, marks
etc. on all types of objects.
Specifications
  • Pantograph - 1/2 to 1/7 in 21 stages
  • Spindle - 15,000rpm 3ø straight shaft
  • Vice (Max. opening) - 170mm
  • (Max. forward-back movement) - 140mm
  • (Max. lateral movement) - 60mm
  • Max. engraving area - 200 x 125 at 1/2 setting
  • (Distance from cutter tip to frame) - 67mm
  • (Distance from cutter tip to BDC of vice) - 25.5mm
  • (Max. clamp width) - 160mm
  • Copy table - 150 x 400mm
  • Motor - 100V 40W
  • Dimensions - 450(W) x 500(L) x 220(H)mm
  • Net weight - 14.9kg
  • Packing size & weight 565(W) x 620(L) x 350(H)mm/18kg
