Supporting Equipments - Our Products
Click to Enlarge Image

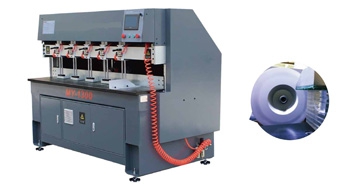

MY Series Acrylic High Speed Polishing Machine

Description

Simplify Acrylic Processing!

Model - MY-1600, MY-1300
Model MY-1600 MY-1300
Machine size 2540mmx1000mmx1520mm 2240mmx1000mmx1520mm
Main structure Steel welding Steel welding
Work area T100mmxL1600mm (Or infinitely long) T100mmxL1300mm(Or infinitely long)
Spindle speed 7000-9000RPM 7000-9000RPM
Work speed 0-1000mm/min 0-1000mm/min
Bevel polishing 0°-60° 0°-60°
Machining model Spindle feeding Spindle feeding
Speed regulation Frequency conversion Frequency conversion
Program control PLC PLC
Machine power 2KW AC 50-60 Hz, 3ph 380V 2KW AC 50-60 Hz, 3ph 380V
Compressed air 0.6-0.8Mpa 0.6-0.8Mpa
Machine weight 1300Kg I000Kg
Name Version
MY Series Acrylic High Speed Polishing Machine 1
