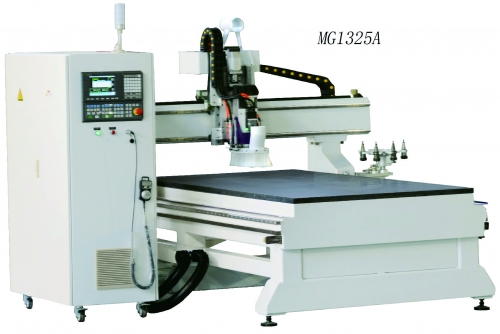

Moving Column CNC Machining Center - A

Description

Integral welding body, high inflexibility structure design, material stress analysis & forming by heat treatment, avoid deformation. Transmission part adopts high precision helical rack, THK linear rail from Japan, supplement with Japan Panasonic servo system and Taiwan professional deceleration device, ensure machine running smoothly in high speed, high precision, low noise. Equipped with professional vacuum system, adopt integral adsorption base, with the high strength engineering-plastics surface, one-time forming, adopt high-power professional vacuum pump, strong adsorption capacity. High power spindle from Italy, low sway in axial, strong cutting force, long lifetime, low noise, with imported Bamboo Hat ATC library of 8pcs tool, high efficiency. Industrial control system, professional electronic parts, perfect function, stable performance, strong compatibility of software.
  • Overview
  • Product Images
  • Downloads
  • Enquiry Product

Moving Column CNC Machining Center - A

Performance Features:

  • Integral welding body, high inflexibility structure design, material stress analysis & forming by heat treatment, avoid deformation.
  •  Transmission part adopts high precision helical rack, THK linear rail from Japan, supplement with Japan Panasonic servo system and Taiwan professional deceleration device, ensure machine running smoothly in high speed, high precision, low noise.
  •  Equipped with professional vacuum system, adopt integral adsorption base, with the high strength engineering-plastics surface, one-time forming, adopt high-power professional vacuum pump, strong adsorption capacity.
  • High power spindle from Italy, low sway in axial, strong cutting force, long lifetime, low noise, with imported Bamboo Hat ATC library of 8pcs tool, high efficiency.
  • Industrial control system, professional electronic parts, perfect function, stable performance, strong compatibility of software.

Application:

Applicable to process kinds of boards, such as solid wood, acrylic, PVC board, shaving board, fireproof wood etc. Widly used in complex processing on door, cupboard, audio wood shell etc.

Technical Data

jastucimadracihoroscopeumrlivicevihoroskopknjigelektire
Model MG1325A MG1630A MG2030A
 Working Size 1300x2500x210mm 1600x3000x210mm 2000x3000x210mm
 Table Size 1220x2440mm 1530x2940mm 1930x2940mm
 Max. Travel Speed X axis - 30m/min, Y axis - 30m/min, Z axis - 20m/min
 Transmitting X, Y - high accuracy helical gear, Z - rolling ball screw
 Servo Type Japan Panasonic (Yaskawa is optional)
 Spindle Type  9KW ATC spindle motor
 Spindle Rev. 18000 - 24000 rpm
 Vacuum Table Matrix vacuum table
 Pump Type Moporo, Germany Becker (optional)
 Tool Type Bamboo Hat ATC
 Tool Magazine 8pcs (10pcs, 12pcs is optional)
 Controlling System SYNTEC (OSAl is optional)
 Voltage AC380V/3PH/50HZ
 Machine Size 2200x3100x2000mm 2500x3600x2000mm 2900x3600x2000mm
 Weight 2100KG 2900KG 3400KG

Moving Column CNC Machining Center - D

Technical Data

 Model MG1325D MG1630D MG2030D
 Working Size 1300x2500x210mm 1600x3000x210mm 2000x3000x210mm
Table Size 1220x2440mm 1530x2940mm 1930x2940mm
 Max. Travel Speed X axis - 30m/min, Y axis - 30m/min, Z axis - 20m/min
 Transmitting X, Y - high accuracy helical gear, Z - rolling ball screw
 Servo Type Japan Panasonic (Yaskawa is optional)
 Spindle Type  Italy 10KW ATC spindle motor
 Spindle Rev. 18000 - 24000 rpm
 Vacuum Table Matrix vacuum table
 Pump Type Moporo, Germany Becker (optional)
 Tool Type Linear auto tool change system
 Tool Magazine 6pcs (8pcs is optional)
 Controlling System SYNTEC (OSAl is optional)
 Voltage AC380V/3PH/50HZ
 Machine Size 2200x3100x2000mm 2500x3600x2000mm 2900x3600x2000mm
 Weight 2100KG 2900KG 3400KG
