Signvec Metal Laser Marking / Cutting - Our Products
Click to Enlarge Image

Fiber Laser Marker FLM-20S, FLM-20P, FLM-20H, FLM-20W

Description

Fiber Laser is popular used for marking logo, serial number, bar code or other designs on metallic products such as bearing, gold ring, hardware tools, aluminum nameplat & consumer electronics. Also it can be used for part of engineering plastic such as keyboard, mobile charger housing, plastic toy and etc
  • Overview
  • Product Images
  • Downloads
  • Enquiry Product

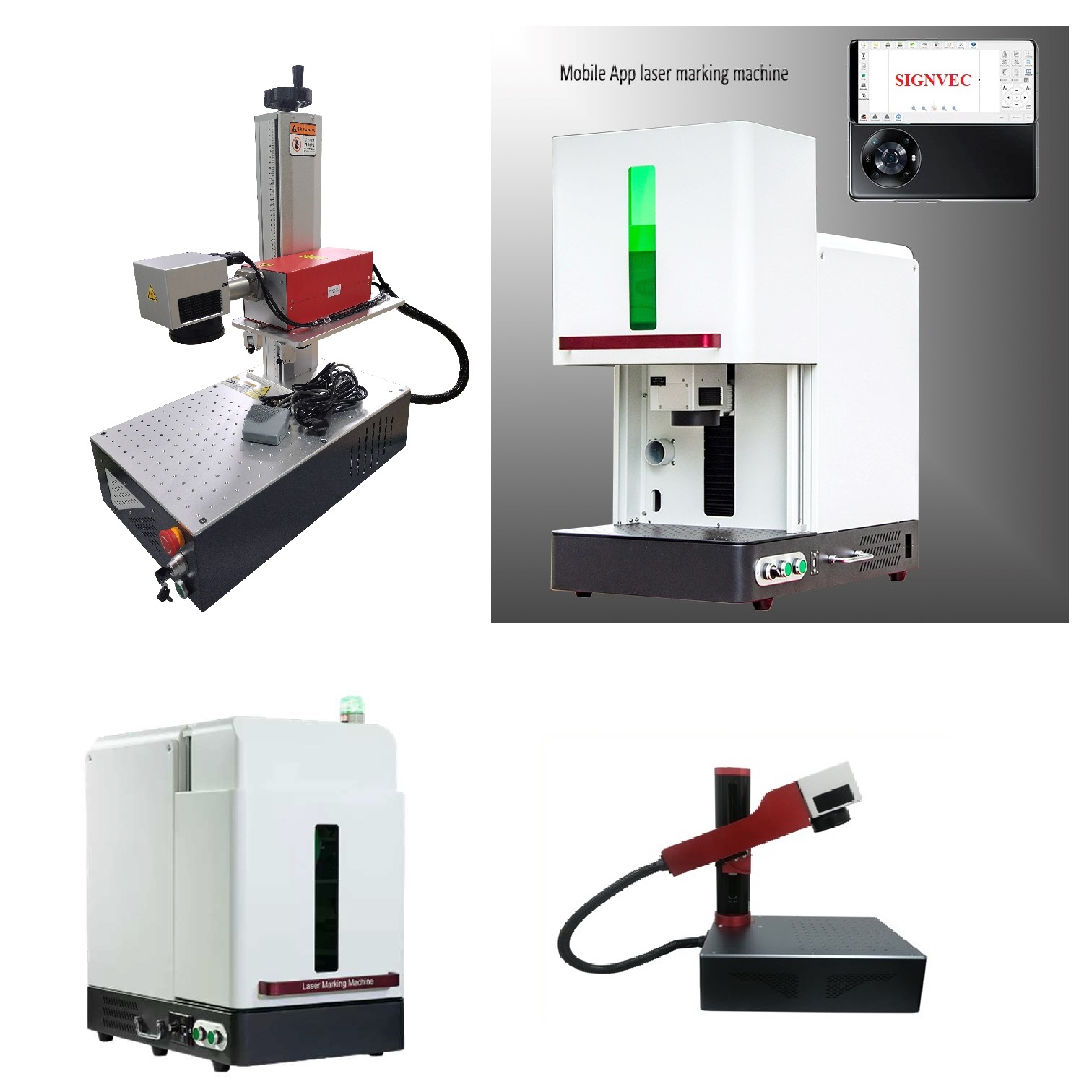

Fiber Laser Marking Machine

Equipment Features:

1.Taking use of integrated design of whole structure, equipped with automatic focusing system. The operation is very humanized.
2.Adopting the imported original IPG fiber laser form Germany. And taking use of original imported isolators to protect fiber laser window, which enhances stability and laser life.
3.Its beam quality is much better than traditional solid laser marking machine. As the base module(TEM00) output, diameter of focal spot is less than 20um.Divergence angle is 1/4 of pumped semiconductor laser. Particularly applicable to fine, precision marking.
4.Imported galvanometer scanning system which makes the optical model nice and beam quality is excellent. Also without any problem even marking fast.
5.Long lifetime, small size, apply to work in the narrow environment.
6.Processing speed is 3 or 5 times faster than traditional marker.

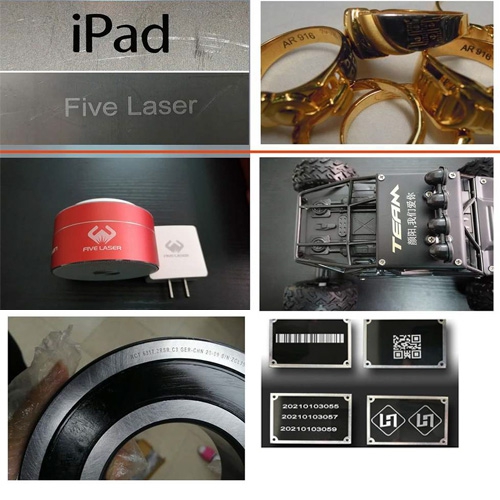

Applied industry and materials

 Materials:Any metal(including precious metals), engineering plastic, plating coating materials, spray material, plastic, rubber, epoxy resin, ceramic, and other materials.

Industry:The phone keypad keys, translucent plastic keys, electronic components, integra ted circuits(IC), electrical applicances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks and watches, jewellery, automobile accessories, bags decorated clasps, cookers, stainless steel products and other undustries.



Technical Parameters

 Laser Power  20W, 30W, 50W, 100W
 Laser  Wavelength  1064nm
 Beam quality  M²<1.6
 Laser Repetition Rate  30-60KHZ
 Marking speed  ≤6000mm/s
 Min.width   0.01mm
 Working area   100mmX100mm, 150mmX150mm
 Min. characters  0.15mm
 Orientation precision  ±0.02mm
 Average power  consumption  <500W
 Power  AC220V 5A 50Hz
 Cooling style  Air cooling system
 Dimesion  330 X 600 X 580mm
 G.W  28Kg



Name Version
Signvec Fiber Laser Marking Machine 1
