Desktop Light 530 - C02 Laser cutting & engraving machine

High refined & High efficient

30-60W CO2 laser power with 10640nm wavelength. Max working speed up to 600mm/s, laser beam positioning accuracy of 0.025mm with red dot positioning and maximum cutting thickness of up to 20mm(Acrylic), making your laser creations more refined and efficient.

Robust laser head assembly

High robustness fully enclosed and semiopen optional laser head design for stable operation of more than 9000 hours of laser life, and autofocus laser head equipped with laser lifting stroke 30mm for highly fine cutting and engraving.

4K 16MP ultra HD CCD camera

The panoramic 4K 16MP pixel ultra HD camera is for image pattern extraction and position carving and it can be a monitor to review the whole working process. Three practical and creative features in one.

Multiple safety protection

The fully enclosed body and internal structure, drawer and cover open stop safety protection design, emergency safety button, safety key, indicator light, multiple safety combination design, high standards CE certified test by SGS lab and FDA registration of Class 1 laser product.

Powerful and easy-to-use creation system

The 5inch operation screen and powerful creation software that compatible with PS, AI, CorelDraw, AutoCAD, Solidworks. Upload high-qiality designs in JPG, DXF, AI, DST, PNG, BMP, TIF or SVG. And all of those works can be done on the phone as well. With Lightmaker’s APP version for easier and more innovative design and operate your laser machine.

ECO-friendly & Cost-effective

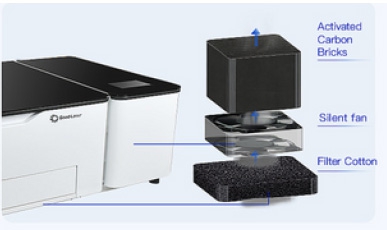

Filter, activated carbon and UV ozone multiple smoke filter system work more efficiently, cleaner and environmentally friendly.

Wide range of applicable materials

Non-metallic materials such as: Wood Board, Cardboard, Corrugated Cardboard, Acrylic Board, Cloth, Leather, Backing Board, Two-colour board, PET, Rubber, Veneer, Glass Fiber, Plastic
