Good-Laser Systems - Our Products
Click to Enlarge Image

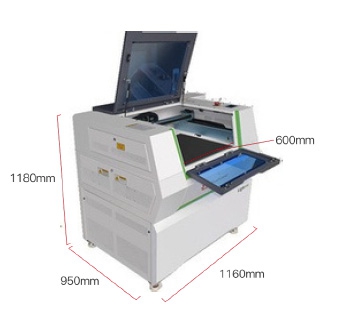

All-rounder laser cutting machine - Light 640 / 960 / 1390 / 1610

Description

Shock-proof and high safety thanks to the advanced high-performance high-speed motor. It not only supports a working speed up to 1000mm/s but also runs more stably and with lower noise.

  • Overview
  • Product Images
  • Downloads
  • Enquiry Product

All-rounder laser cutting machine for education and makers

Different models with a variety of laser power to meet different application requirements

Laser type : DC C02

Laser power: 60W-150W



Faster and quieter

Shock-proof and high safety thanks to the advanced high-performance high-speed motor. It not only supports a working speed up to 1000mm/s but also runs more stably and with lower noise.



Efficient autofocus + red dot positioning

The autofocus function can quickly and accurately focus and locate before cutting and engraving. Coupled with the beam positioned by the red dot to view the working position in real-time, it saves a lot of time and brings better cutting and engraving results.



Open rear door design

The design of the open back door allows for the placement of cutting and engraving materials of no limit length, the 600mm x ∞ length sheet makes your work more convenient and less restrictive.



Considerate and advanced safety

  • Emergency stops
  • Alarm lamps
  • Water protection switches
  • Earth wiring
  • The built-in heat detector alarm automatically switches on in the event of abnormal machine activity
  • 5x open flap protection
  • The tempered glass material is durable protection window
Laser power 60W-150W
Laser type Sealed Carbon Dioxide Glass Tube
Metal Laser Tube (Optional)
Working area 600x400mm
900x600mm
1300x900mm
1600x1000mm
Processing platform Honeycomb Platform
Aluminum Knife Platform
Platform lifting Support
Lifting distance 155mm
Maximum cutting thickness 20mm (Acrylic)
Maximum engraving speed 1000mm/s
Positioning accuracy 0.01mm
Resolution(DPI) User-controlled from
100 to 1000 DPI
Focus mode Auto focus, manual focus
Power off continuous carving Supported
Material collection Pull-out receiving drawer
Motion control system High-speed stepper motor
High-speed closed loop motor
Exhaust system Industrial grade air pump
Exhaust fan+ 5M exhaust duct
Cooling system Air cooled(metal tube)
Water cooled(glass tube)
Connection Network / USB / U-Disk
Processing technology Cutting, Tracing
Shallow carving, deep carving
Software LightMaker or Lightburn(PC)
LightMaker(Mobile)
Supported formats Bitmap format JPG/PHG/BMP
Vector format LCP/DXF/PLT/SVG
Support system Windows 10/11, macOS
Device internal storage 256MB
Rated power 1200W
Power supply voltage 220V
Dimensions(length, width and height) 1070x810x660(640)/1500x1200x1180(960)
1860x1450x1200(1390)/2200x1500x1180(1610)
Equipment weight 130kg-470kg
