Signvec Laser Welding Machines - Our Products
Click to Enlarge Image

4 in 1 Laser Welding Machine

Description

Our laser welding will bring you the faster welding speed, beautiful welding seam-no need polish, better welding quality

  •     Temperature monitoring

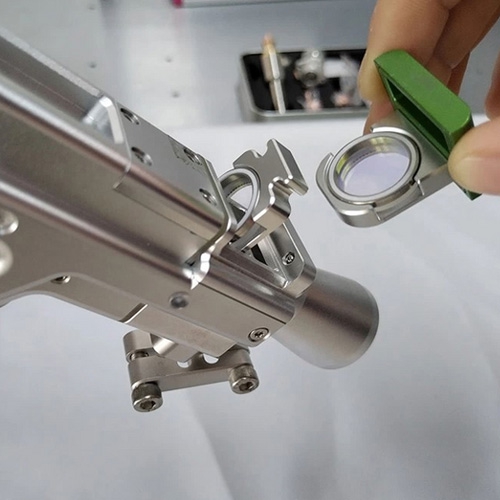

  •     Thicker protective lens
  •     Insert tool design
  •     Easy exchange Between cutting & welding & cleaning

Remote cleaning commonly used for rusty removal and part of coating or painting removal, the cleaning width can reach 80mm

Weldseam cleaning is a new function with professional cleaning nozzle
the cleaning width is 10mm

Shift Laser welding to laser cutting, what you need to do is changing the welding nozzle to
cutting nozzLe

Professional process package No need set laser power, laser frequency, welding width, motor frequency one by one. Only need to select which materiaL and its thickness on touch screen, then parameter settingwill be coming out automatically

More stable wire feeding system easy speed control Automatic feeding and withdraw

4-in-i laser, the 4 functions can be shifted on software directly-WeLd/Cut! Remote Clean! WeldSeam Clean


  • Overview
  • Product Images
  • Downloads
  • Enquiry Product
Models & spec
FAW-1000 (1000w) FAW-1500 (1500w)
FAW.2000 (2000w) FAW-3000 (3000w)
Series: Handheld FAW- series
Name: 4 in 1 laser welding machine
Welding width: 5mm max. welding width
Weldseam cleaning: 10mm max. width
Cleaning width: 80mm max. cleaning width
Cutting function: Cutting by handheld
Laser source: Raycus laser source as standard
Laser source option: JPT. MAX. BWT
Cooling: Water chiller for cooling
Dispaly: 7’ touch screen
Lauguage: More than 10 lauguages for optional
White/blue color cabinet: 96*49*68cm
White/gray color cabinet: 98*58*105cm
White/Red color cabinet: 118’6Ol2lcrit
Name Version
4 in 1 laser welder FAW series 1
