Vision Engraver & Router System - Our Products
Click to Enlarge Image

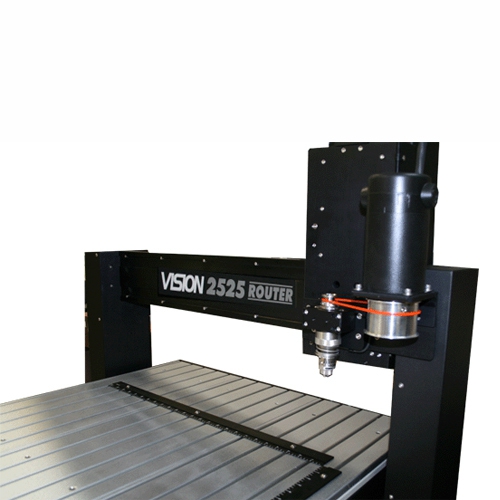

25 Series 2525 S5 CNC Router / Engraver

Description

The 2525 S5 CNC Router/ Engraver is Vision's heavy-duty routing system. It can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our state-of-the-art Vision Series 5 Controller with V-Touch Pendant and our graphically advanced Vision software, this machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing.

The 2525 S5 CNC Router:

    • 25" x 25" aluminum T-slot table to accommodate various work-holding    fixtures

    • Red Laser Pointer for easy job set-up

    • Includes Series 5 Controller w/ V-Touch pendant

    • Optional Raster™ Braille Inserter for automatic Braille bead insertion

    • A limited 2-year warranty

Applications: ADA-compliant signage, Routing out wood signs, Cutout letters, Control panels, Cutting out sheets of material up to 2' x 4', 2 1/2D and 3D signs in sign foam, wood and more!

Offering the best and most affordable CNC Routers in their class, Vision's 2525 S5 CNC Router is made in the USA, built to be rugged, and backed by a superior customer support team.

  • Overview
  • Product Images
  • Downloads
  • Enquiry Product

2525 Large Router Specifications Chart

Software Vision Express (Expert or Pro Optional)
MAX. work area 25" x 25"
Maximum size part 30.5”(L) x Any Width x 7”(H)
Z-Axis Stroke 7” (Standard) or 10” (Optional)
Spindle Type Engraving Head standard. 3 HP Router Motor optional
Resolution / Speed 0.0002" - 10"/sec
Table Type Aluminum T-slot
Interface Ethernet
Controller Series 5 Controller w/ Advance V-Touch Pendant
Warranty 2-Year Limited
Power Requirements 110/220V 15 Amp
Physical Dimensions 40"(W) x 42"(D) x 32"(H)
Series 5 Controller Dimensions 13.5"(W) x 16"(D) x 4.5"(H)
Shipping Dimensions 47"(W) x 58"(D) x 38"(H) - 534 lbs
Additional Options Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), 3 HP High Frequency Router Motor, 50,000 RPM Spindle, *3D Engraving Software, Oscillating Knife
